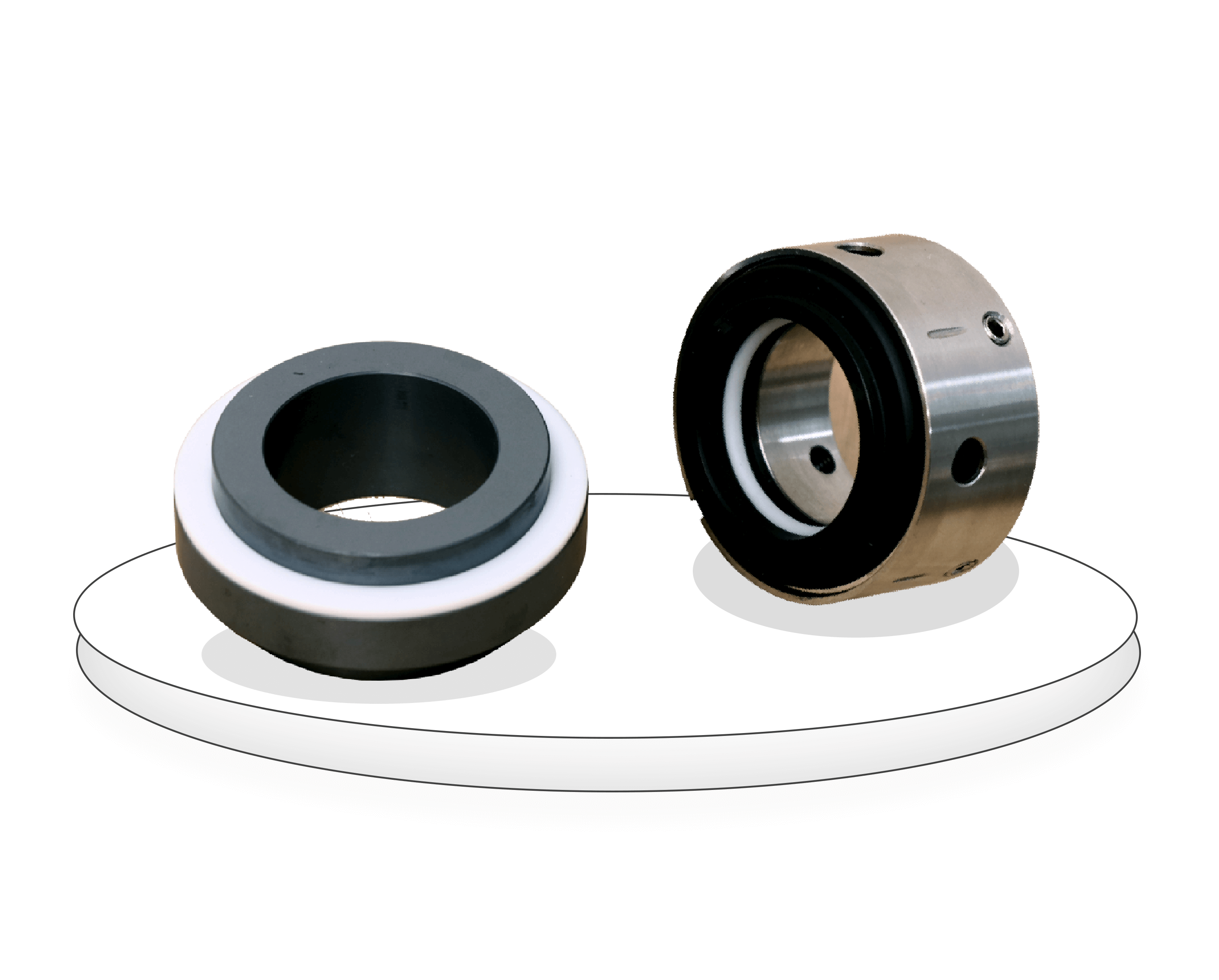

SRB (Reverse Balanced Single Acting)
MATERIAL
Rotary Faces:
GFT, Sic, Carbon
Stationary Faces:
Sic, Ceramic
Secondary Seals:
VITON, EPDM, PTFE, FEP, FKM
Metal Parts:
SS-316, SS-304, Hastelloy-c, Alloy- 20
OPERATING PARAMETERS
Sizes:
20 mm to 120 mm
Pressure:
Full Vacuum 12.0 bar
Temperature Limit:
20°C to 120°C
Velocity:
20 m/s
Features
- Bi-Directional
- Externally Mounted
- Reverse Balanced Seal
- Multi Spring, Uniform Pressure on Faces
- No Metal Part in contact
- Better for Vacuum and corrosive application
Industries We Cater To
Chemical
Pharmaceutical
Food Processing
Paper & pulp
Mineral Processing
Textile
